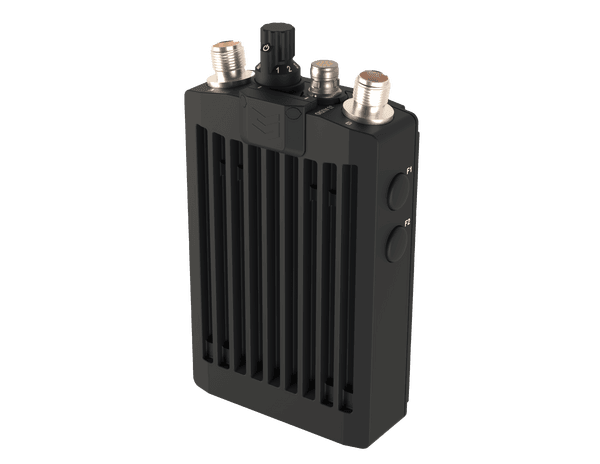

Codan | DTC's Sentry Mesh 6161 is the ultimate personal radio for demanding applications that require performance, range and versatility in a lightweight and compact, wearable unit that minimises burden on users
The Sentry Mesh 6161 is a Software Defined Radio hosting our highly robust MANET waveforms that have been proven in applications from Public Safety to Unmanned Systems and Covert Operations. The MeshUltraTM waveform optimises the use of available channel bandwidth through a token passing technology, which avoids collisions and provides a bound, predictable data packet latency. Wider bandwidth, together with superior RF performance and optional Interference Avoidance System (IAS), maximises communications effectiveness in the presence of interference.
The standardised design of the 6161 ensures that it can be integrated with a large range of accessory devices such as audio, data, power solutions, and antennas to address current and future program needs.
Download
SWAP OPTIMISED
Weighing just 410g, the Sentry Mesh 6161 features a compact, light, and ergonomic design which supports integration with a range of accessory devices such as power and data hubs and off-the-shelf battery solutions, ensuring flexibility and scalability of configuration.
SUPPORTED COMMUNICATION MODES
The Sentry Mesh 6161 radio provides high quality simplex and full duplex digital voice and high speed IP data capabilities over a robust, self-forming and self-healing wireless network. Voice communications via single or multiple simultaneous talkgroups is fully supported through preset configuration and the dual PTT capability. Data rates of up to 87 Mbps are achievable providing the possibility for a wide range of data applications like sensors and video streaming, greatly enhancing the operational picture.
TOUGH AND FUTURE PROOF
The modular and standards-based design of the Sentry Mesh 6161 radio means that it can be easily integrated with MOTS and COTS equipment such as conformal RF and GPS antennas, power systems, cameras and end user devices, facilitating a huge range of deployment configurations. The 6161 radio is a full MIL spec, waterproof design, ensuring that it can operate reliably in the harshest conditions.
Rugged
Designed, tested and certified to IP68 and comprehensive MIL-STD-810H standards, the Sentry Mesh 6161 is built to last in all conditions.
Lightweight
The Sentry Mesh 6161 sets the standard with a weight of just 410g, excluding accessories.
Compact
The highly optimised design of the Sentry Mesh 6161 has resulted in an extremely compact and ergonomic form factor.
Ease of Use
With the embedded web-based configuration tool and simplified controls on the Sentry Mesh 6161 radio unit, ease of configuration and use is assured.
Encryption
Security of voice and data communications is assured through the optional FIPS 140-2 certified AES-256 bit encryption, with DES-56 bit encryption also available.
MIMO/MESH
The MeshUltaTM MIMO MESH waveform maximises throughput and optimises spectrum utilisation along with superior performance in the presence of interference.
Situational Awareness
With its embedded GPS receiver/antenna and direct compatibility with applications such as ATAK (Android Team Awareness Kit), the Sentry Mesh 6161 can support situational awareness capabilities.
