Codan’s Transportable Mast 10m is designed for tactical use where rapid deployment and ease of transportation is important.

The mast is fully compatible with the Codan 125 W Tactical 411 Broadband antenna and can also be used with the Codan portable Manpack (25 W) antennas. The high tensile aluminum tubing and rope guy sets provides a lightweight but robust support for tactical antenna deployments. All metal parts, including the mast tube sections are blackened to reduce visual detection.

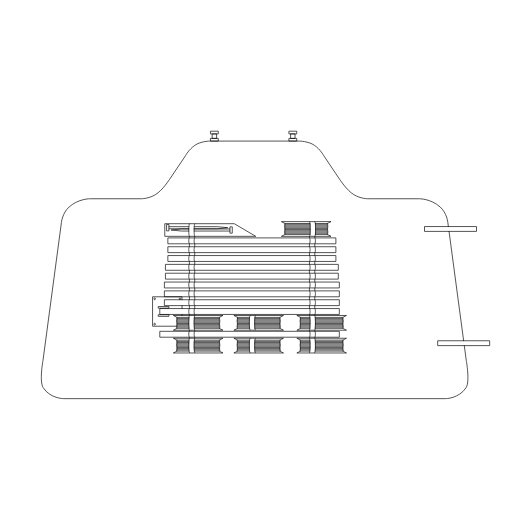

The mast components are packaged in a durable canvas carry bag for storage and transportation. The mast has an overall weight of approximately 15 kg and packed length of 1.3 m, and easily accommodated by mechanized transportation.

Deployment of the 10 m mast is a simple task of securing the guy anchor stakes and the mast base and then fitting the guys sets at the mid and upper level mast sections. The mast can then be erected and the guy ropes secured using the quick release tensioning shuttles. A rope halyard and pulley is provided for raising and lowering antennas.
